Pinhole lensboard

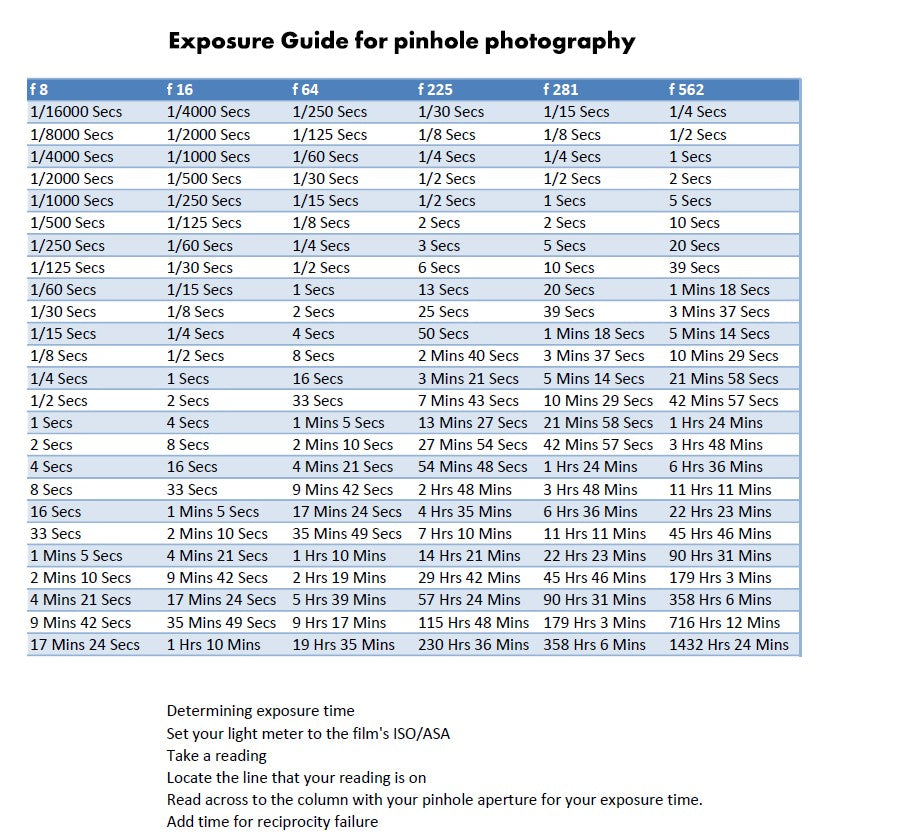

1. Determining exposure time
2. Set your light meter to the film's ISO/ASA
3. Take a reading
4. Then, using the chart locate the line that your reading is on
read across to the column with your pinhole aperture for your exposure time.
5. Add time for reciprocity failure

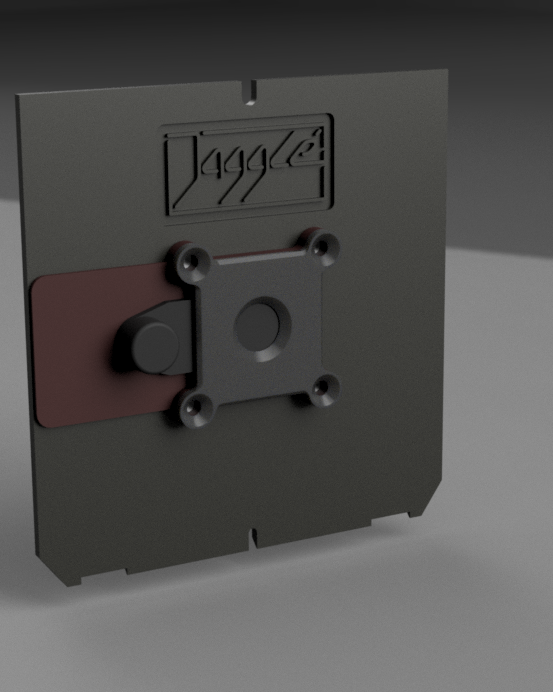

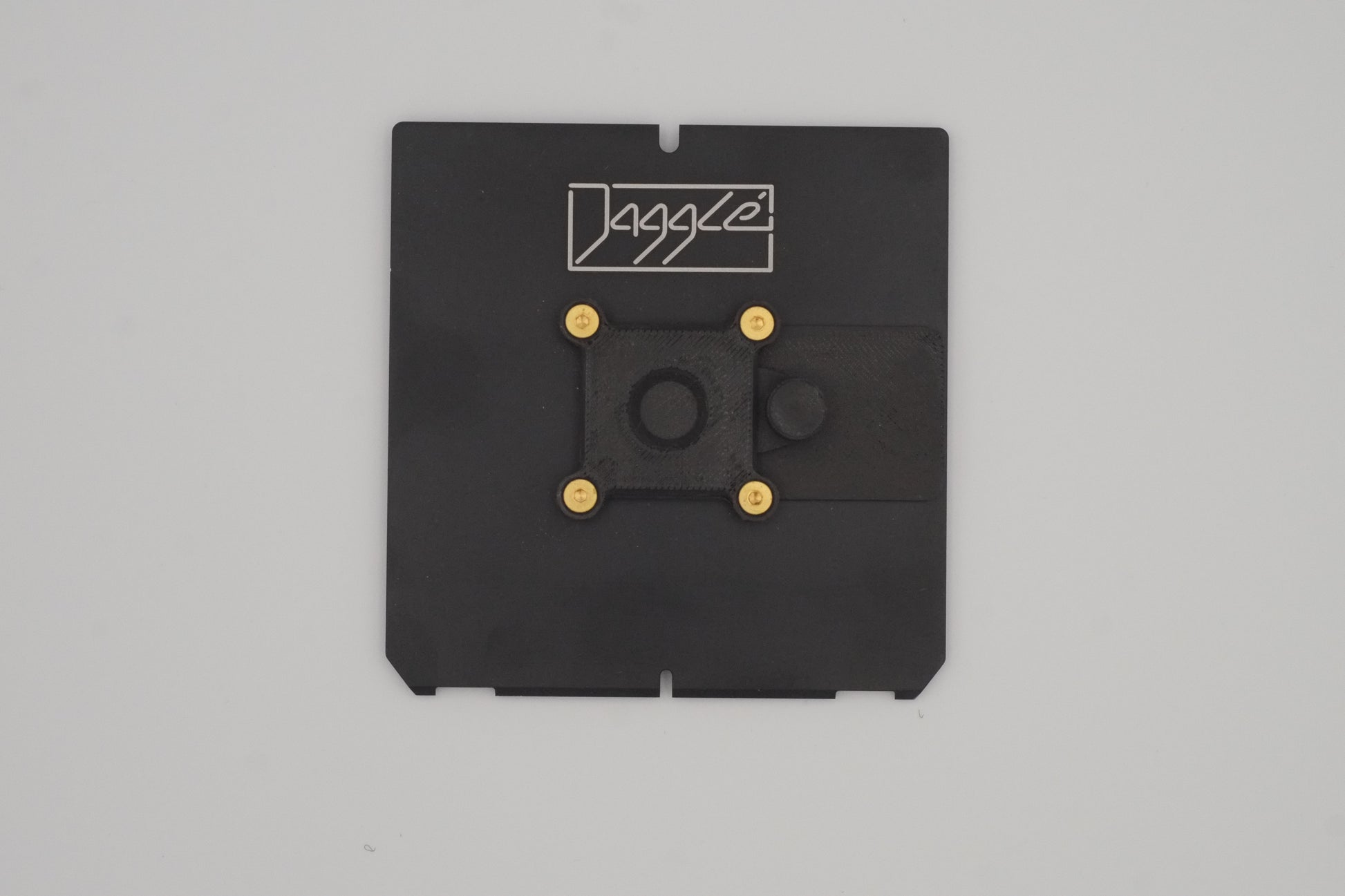

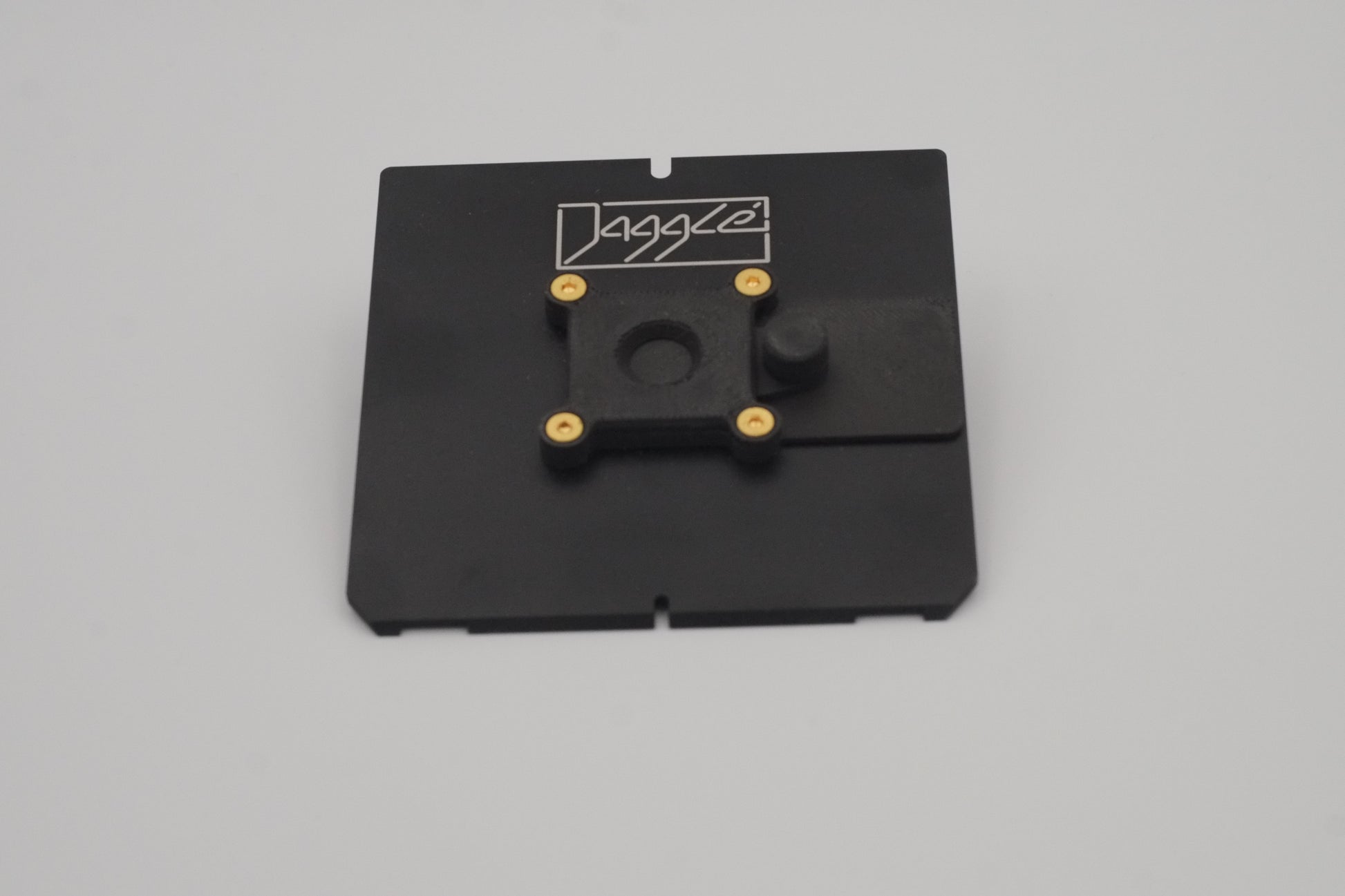

- Durable Construction: Built from lightweight yet robust materials, the lensboard is engineered to withstand extensive outdoor use. The Lensboard itself is made from aluminium, with a 3D printed shutter mechanism for an optimal balance between durability and price

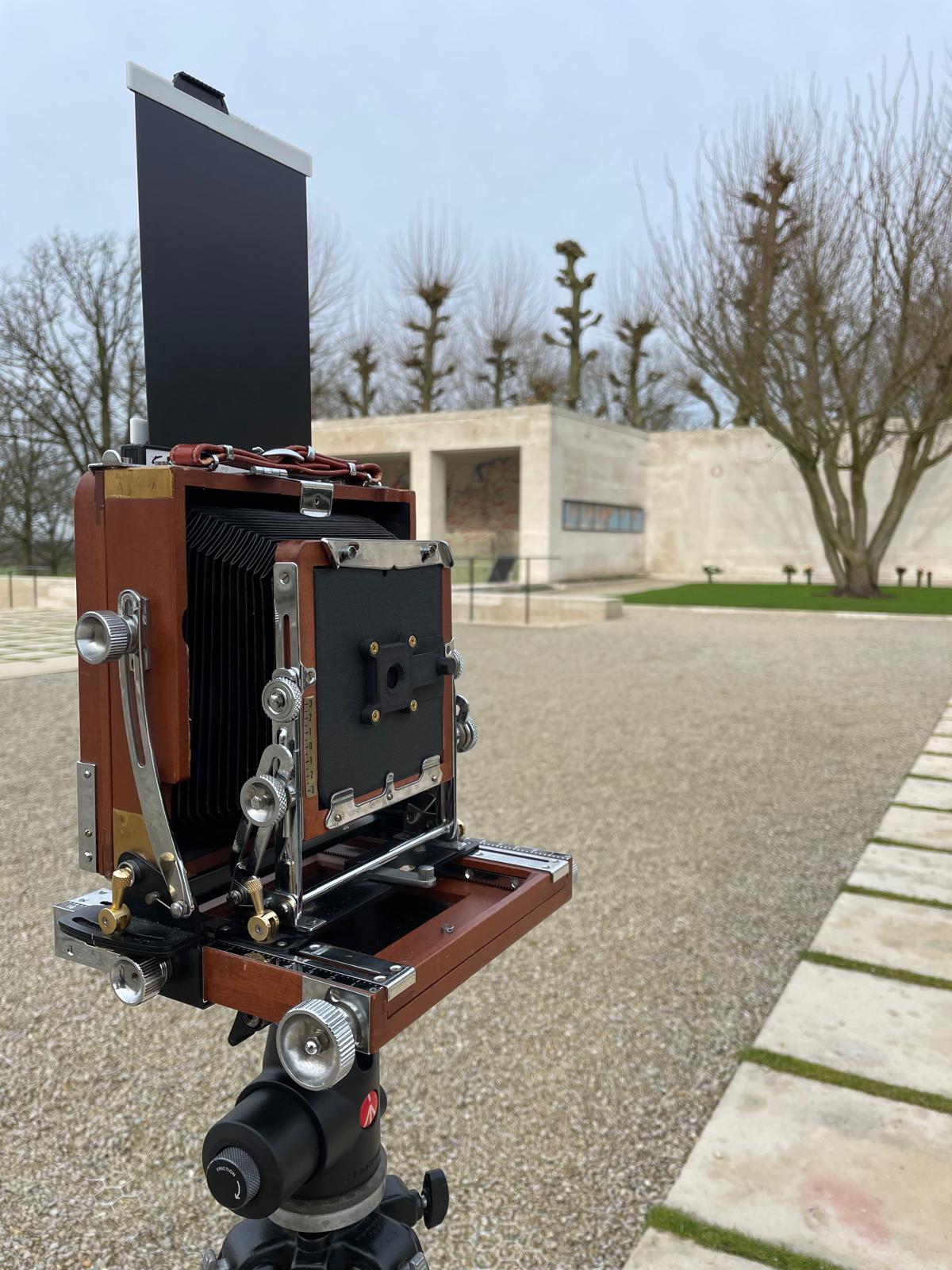

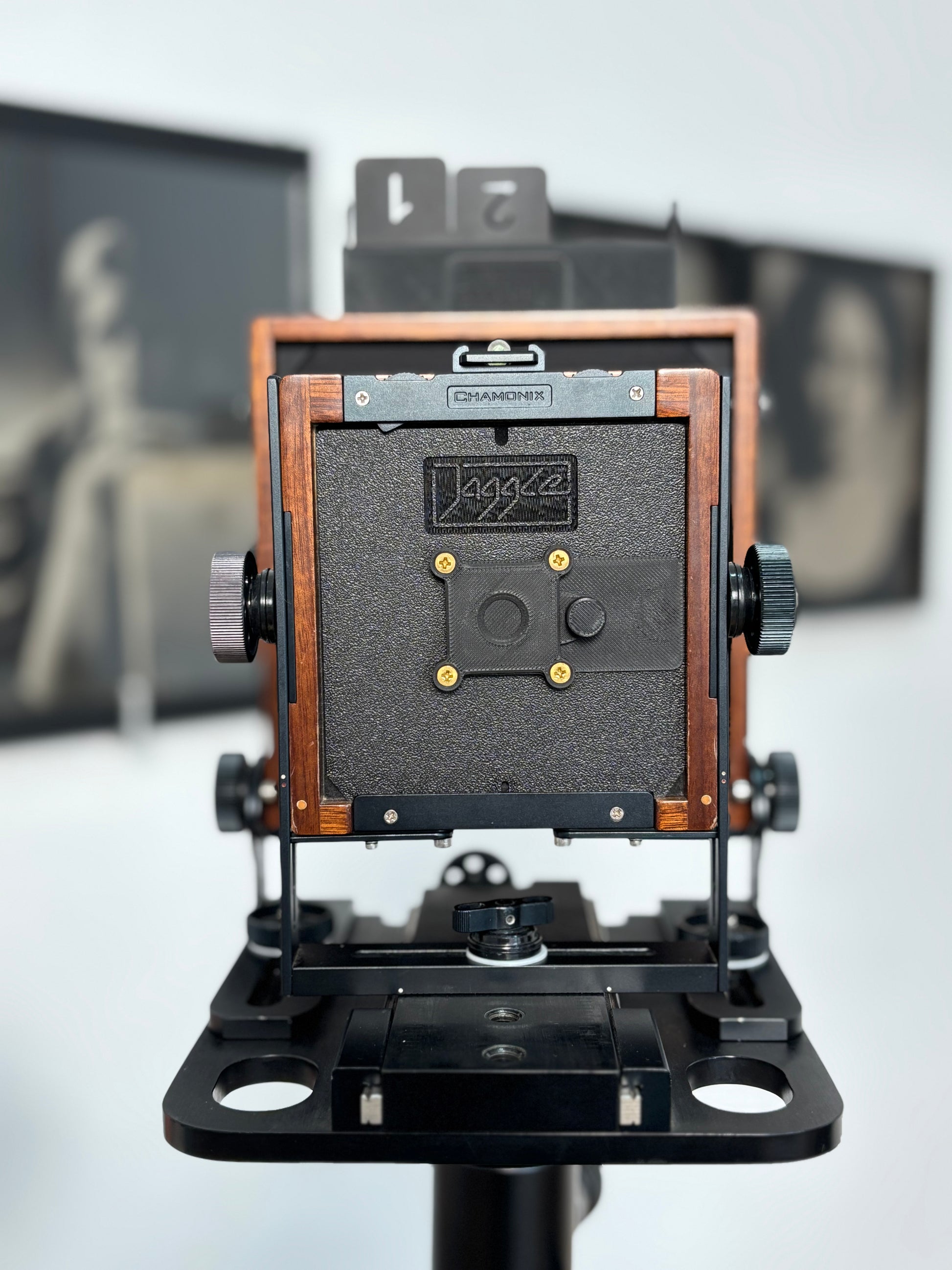

- Universal Compatibility: Designed to fit all cameras with Linhoff style 96x99mm lensboards such as Intrepid, Chamonix, Wista, Tachihara, Gibellini, Ondu, Stenopaika and others
- Intuitive Design: The magnetic shutter not only simplifies operation but also enhances the tactile experience, making every shot feel deliberate and controlled.

Whether you're capturing ethereal landscapes or experimenting with creative exposures, the Jagglé Pinhole Lensboard empowers you to focus on the art without worrying about the mechanics. Elevate your pinhole photography with the smooth precision of magnetic shutter technology—designed to inspire confidence and creativity in every shot.

Each pinhole option is meticulously crafted to deliver unparalleled image quality, allowing photographers to experiment with various angles and exposures.

Available Pinhole Size Options

To cater to diverse creative needs, the Jagglé Pinhole Lensboard is available in three precision-crafted pinhole sizes, each offering unique focal lengths, F-stops, and angles of view:

Pinhole Size: 0.4 mm
Focal Length: 90 mm
F-stop: 225
Angle of View: 84.2°
Ideal for wide-angle compositions with excellent sharpness and minimal distortion.
Pinhole Size: 0.5 mm
Focal Length: 141 mm
F-stop: 281
Angle of View: 60°
A versatile option for balanced perspectives and moderate depth.
Pinhole Size: 1 mm
Focal Length: 562 mm
F-stop: 562
Angle of View: 16.5°
Perfect for narrow, telephoto-style compositions with exceptional focus on distant subjects.

- Magnetic Shutter Mechanism: Unlike traditional sliding or manual shutters, the magnetic system ensures a smooth, effortless operation, providing an enhanced user experience.
- Reliable Exposure Control: The magnets lock the shutter in a fully open or fully closed position, eliminating the guesswork and drastically reducing the risk of accidental exposures.
- Built for Precision: Designed with meticulous attention to detail, the shutter system ensures uniform pinhole coverage for consistently sharp and artifact-free images.

Fully assembled lensboards with working shutter and pinhole installed ready to use as well as a getting started guide with an exposure guide
